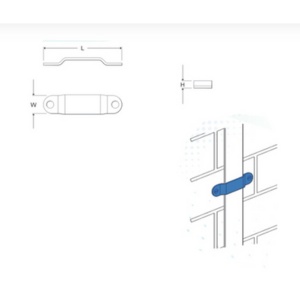

Wallis Tape Clips hold the flat tape conductor flush to the building surface. Fix using countersunk woodscrews 11/2 x No 10 and No.10 wall plug.
| EARTH ROD SHANK Ø MM | CONDUCTOR RANGE MM | L MM | W MM | H MM | PART NUMBER |
|---|---|---|---|---|---|
| 9.5 | 6 - 35 | 32 | 20 | 16 | BCLG 9 |
| 12.7 | 6 - 35 | 41 | 25 | 15 | BCLG 121 |
| 12.7 | 35 - 70 | 41 | 25 | 17 | BCLG 122 |
| 14.2 | 16 - 70 | 48 | 25 | 17 | BCLG 142 |
| 15 | 70 - 150 | 48 | 30 | 19 | BCLG 152 |
| 17.2 | 6 - 95 | 48 | 30 | 19 | BCLG 171 |
| 20 | 6 - 70 | 48 | 30 | 19 | BCLG 201 |
