| Specification | Value |
|---|---|
| Crimping Range | 4-70mm² |
| Crimping Force | 8T |
| Crimping Type | Hexagon Crimping |
| Stroke | 10mm |
| Length | Approx. 310mm |
| Weight | Approx. 2.80kg |
| Package | Plastic Box |
| Weight of Box | Approx. 0.56kg |
| Crimping Dies | 4, 6, 8, 10, 16, 25, 35, 50, 70mm² |
| Specification | Value |
|---|---|
| Crimping Range | 10-120 mm² |
| Crimping Force | 12T |
| Crimping Type | Hexagon Crimping |
| Stroke | 14mm |
| Length | Approx. 425mm |
| Weight | Approx. 4.00kg |
| Package | Plastic Box |
| Weight of Box | Approx. 0.77kg |
| Crimping Dies | 0, 16, 25, 35, 50, 70, 95, 120mm² |
| Specification | Value |
|---|---|
| Crimping Range | 10-120 mm² |
| Crimping Force | 12T |
| Crimping Type | Hexagon Crimping |
| Stroke | 14mm |
| Length | Approx. 425mm |
| Weight | Approx. 4.20kg |
| Package | Plastic Box |
| Weight of Box | Approx. 0.81kg |
| Crimping Dies | 0, 16, 25, 35, 50, 70, 95, 120mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-240 mm² |
| Crimping Force | 16T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Height | Approx. 480mm |
| Weight | Approx. 5.20kg |
| Package | Plastic Box |
| Weight of Box | Approx. 1.20kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240mm² Sealing O-Ring: One Set |
| Specification | Value |
|---|---|
| Crimping Range | 10-150 mm² |
| Crimping Force | 60KN |
| Crimping Type | Hexagon Crimping |
| Stroke | 15mm |
| Length | Approx. 370mm |
| Weight | Approx. 2.50kg |
| Reservoir Capacity | 60cc |
| Package | Plastic Box |
| Weight of Box | Approx. 1.00kg |
| Crimping Dies | 10, 16, 25, 35, 50, 70, 95, 120, 150mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 16T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Length | Approx. 500mm |
| Weight | Approx. 6.30kg |
| Package | Plastic Box |
| Weight of Box | Approx. 1.21kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 16T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Length | Approx. 500mm |
| Weight | Approx. 6.80kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.30kg |
| Crimping Dies | 6, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 16T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Length | Approx. 500mm |
| Weight | Approx. 6.80kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.30kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 60KN |
| Crimping Type | Hexagon Crimping |
| Stroke | 17mm |
| Height | Approx. 460mm |
| Weight | Approx. 3.30kg |
| Package | Steel Case |
| Weight of Box | Approx. 1.20kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 16T |
| Crimping Type | Hexagon Crimping |
| Stroke | 20mm |
| Length | Approx. 500mm |
| Weight | Approx. 6.80kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.30kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 50-400 mm² |
| Crimping Force | 20T |
| Crimping Type | Hexagon Crimping |
| Stroke | 25mm |
| Length | Approx. 540mm |
| Weight | Approx. 8.30kg |
| Package | Plastic Box or Steel Case |
| Weight of Box | Approx. 4.00kg |
| Crimping Dies | 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-150 mm² |
| Crimping Force | 16T |
| Crimping Type | Indent Crimping |
| Stroke | 20mm |
| Length | Approx. 500mm |
| Weight | Approx. 4.60kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.00kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-200 mm² |
| Crimping Force | 16T |
| Crimping Type | Indent Crimping |
| Stroke | 20mm |
| Length | Approx. 510mm |
| Weight | Approx. 4.90kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.00kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 200mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-150 mm² |
| Crimping Force | 16T |
| Crimping Type | Indent Crimping |
| Stroke | 20mm |
| Height | Approx. 470mm |
| Weight | Approx. 3.50kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.00kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-200 mm² |
| Crimping Force | 16T |
| Crimping Type | Indent Crimping |
| Stroke | 20mm |
| Height | Approx. 470mm |
| Weight | Approx. 4.90kg |
| Package | Steel Case |
| Weight of Box | Approx. 3.00kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 200mm² |
| Specification | Value |
|---|---|
| Crimping Range | 400mm² max. Copper Conductor Size |
| Crimping Force | 13T |
| Stroke | 30mm |
| Oil Capacity | 145cc |
| Weight | Approx. 6.20kg |
| Package | Plastic Box |
| Weight of Box | 1.80kg |
| Crimping Dies | 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Specification | Value |
|---|---|
| Crimping Range | 400mm² max. Copper Conductor Size |
| Crimping Force | 13T |
| Stroke | 30mm |
| Oil Capacity | 145cc |
| Weight | Approx. 6.40kg |
| Package | Plastic Box |
| Weight of Box | 1.80kg |
| Crimping Dies | 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Specification | Value |
|---|---|
| Crimping Range | 400mm² max. Copper Conductor Size |
| Crimping Force | 13T |
| Stroke | 30mm |
| Oil Capacity | 200cc |
| Weight | Approx. 7.80kg |
| Package | Plastic Box |
| Weight of Box | 1.80kg |
| Crimping Dies | 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300 mm² |
| Crimping Force | 20T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Weight | Approx. 11.00kg |
| Package | Steel Case |
| Weight of Box | Approx. 4.45kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300mm² |
| Crimping Force | 20T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Weight | Approx. 11.50kg |
| Package | Steel Case |
| Weight of Box | Approx. 4.45kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300mm² |
| Crimping Force | 20T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Weight | Approx. 11.50kg |
| Package | Steel Case |
| Weight of Box | Approx. 4.45kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |

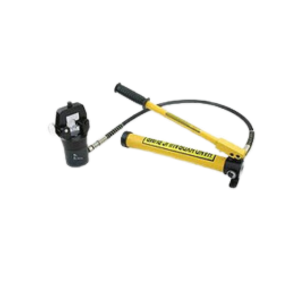

| Specification | Value |
|---|---|
| Crimping Range | 16-400mm² |
| Crimping Force | 20T |
| Crimping Type | Hexagon Crimping |
| Stroke | 22mm |
| Height | Approx. 240mm |
| Weight | Approx. 6.50kg |
| Package | Steel Case |
| Weight of Box | Approx. 1.00kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |

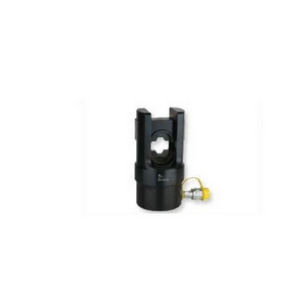

| Specification | Value |
|---|---|
| Crimping Range | 150-630mm² |
| Crimping Force | 30T |
| Crimping Type | Hexagon Crimping |
| Stroke | 25mm |
| Height | Approx. 350mm |
| Weight | Approx. 13.1kg |
| Package | Steel Case |
| Weight of Box | Approx. 2.90kg |
| Crimping Dies | 150, 185, 240, 300, 400, 500, 630mm² |

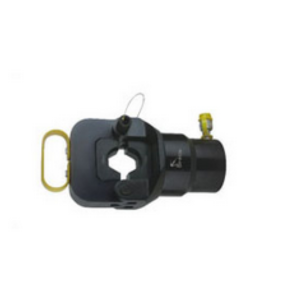

| Specification | Value |
|---|---|
| Crimping Range | 400-1000mm² |
| Crimping Force | 55T |
| Crimping Type | Hexagon Crimping |
| Stroke | 28mm |
| Height | Approx. 380mm |
| Weight | Approx. 46.00kg |
| Package | Steel Case |
| Weight of Box | Approx. 5.50kg |
| Crimping Dies | 400, 500, 630, 800, 1000mm² |
| Specification | Value |
|---|---|
| Crimping Range | 16-300mm² Cu-conductors 10-240 mm² Al-conductors |
| Crimping Force | 6T |
| Crimping Type | Hexagon Crimping |
| Stroke | 16mm |
| Weight | 4kg |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm² |
| Specification | Value |
|---|---|
| Crimping Range | 50-400mm² |
| Crimping Force | 13T |
| Crimping Type | Hexagon Crimping |
| Stroke | 30mm |
| Height | Approx. 240mm |
| Weight | Approx. 6.50kg |
| Package | Steel Case |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
| Specification | Value |
|---|---|
| Crimping Range | 50-400mm² |
| Crimping Force | 13T |
| Crimping Type | Hexagon Crimping |
| Stroke | 30mm |
| Height | Approx. 370mm |
| Weight | Approx. 5.70kg |
| Package | Steel Case |
| Crimping Dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm² |
