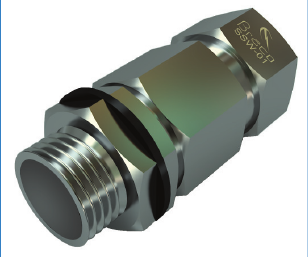

Braco Double Compression Glands are manufactured out of Stainless Steel of Grade SS 304/316andare machined accurately to the required sizes. These glands have two moisture proof seals and may be used under most climatic conditions. These are weather proof and water proof and when protected by a PVC shroud, these can be used under most corrosive conditions.The armour cone and ring gives excellent mechanical and electrical connections.
These Glands are certified by Central Institute of Mining and Fuel Research, Dhanbad for use in weather proof conditions. These Glands are rated with IP protection upto IP- 65Levels.
These glands are as per BS6121:Part1:2005 and have parts:SS body, Armour clamp and Ring, Gland Barrel sealing nut, two seals, check nutand flat washer betweenthe gland barrel and check nut is provided to preventthe drag on outer seal. These glands are available in various different sizes and are suitable forall cables up to 1000sq. mm and control cables up to 61 cores. Threads can be ET/ mm /NPT as per requirement. However if any special kind of gland or thread is required, the same can be supplied onrequest.
| Description | Material |
|---|---|
| 1. Outer Seal | Nitrile Rubber |
| 2. Sealing Nut | SS-304/316 |
| 3. Gland Body | SS-304/316 |
| 4. Clamping Ring | SS-304/316 |
| 5. Armour Clamp | SS-304/316 |
| 6. Inner Seal | Nitrile Rubber |
| 7. Gland Nipple | SS-304/316 |
| 8. Flat Washer | Nitrile Rubber |
| 9. Check Nut | SS-304/316 |
