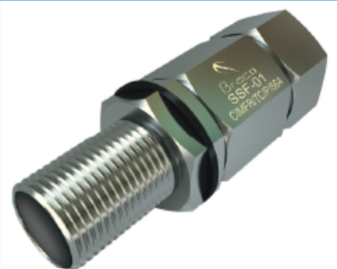

Braco Double Compression Glands are manufactured out of Stainless Steel of Grade $5304/316and are machined accurately to the required sizes. These glands have two moisture proof seals and may be used under most climatic conditions. These are weather proof and water proof and when protected by a PVC shroud, these can be used under most corrosive conditions. The armour cone and ring gives excellent mechanical and electrical connections. These Glands are certified by Central Institute of Miningand Fuel Research, Dhanbad for use in Flame proof and weather proof conditions. These Glands are rated with IP protectionuptoIP-68 Levels.These Glands are certified by Central Institute of Mining and Fuel Research, Dhanbad for use in weather proof conditions. These Glands are rated with IP protection upto IP- 65 Levels.

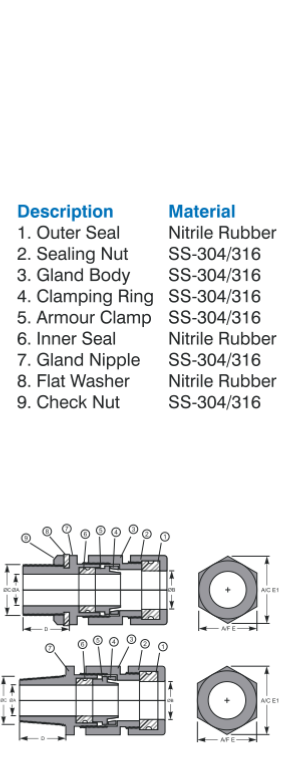

These glands are as per BS 6121:Part 1:2005 and have parts: SS body, Armour clamp and Ring, Gland Barrel sealing nut, two seals, check nut and flat washer between the gland barreland check nut is provided to prevent the drag on outer seal.
These glands are available in various different sizes and are suitable for all cables up to 1000sq. mm and control cables up to 61 cores. Threads can be ET / mm /NPT as per requirement. However if any special kind of gland or thread is required, the same can be supplied on request. Can be supplied in 11A/11B/IIC
Material :SS-304 / SS-316
