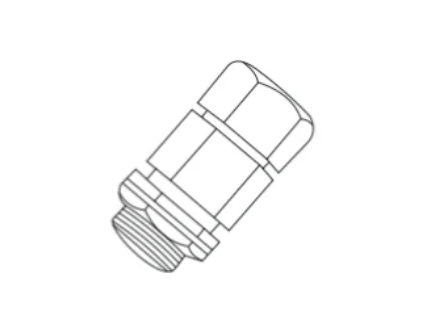

Braco Double Compression Glands are manufactured outof brass rods/castingsand are machined accurately tothe required sizes. These are nickel plated to avoid corrosion whilst storage and use. These glands have two moisture proof seals and may be used under most climatic conditions. Theseare weather proofand water proofand when protected by a PVCshroud, these can be used under most corrosive conditions.The armour cone and ring gives excellent mechanical and electrical connections.
These Glands are certified by Central Institute of Mining and Fuel Research, Dhanbad for use in Flame proof and weather proof conditions.These Glands are rated with IP protection uptoP-68 Levels.

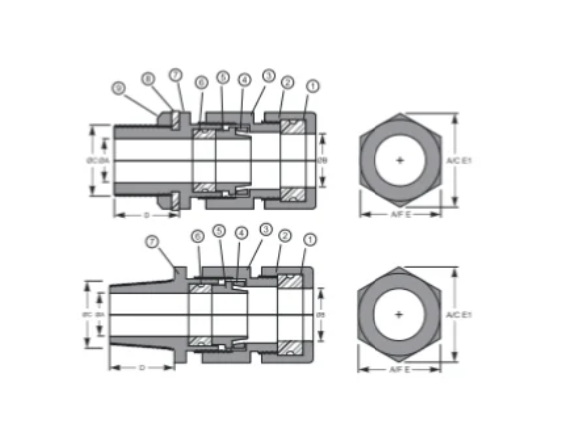

These glands are as per BS 6121:Part 1:2005 and have parts: Brass body, Armour clamp and Ring, Gland Barrel sealing nut, two seals, check nut, check nutand flat washer between the gland barrel and checknutis providedo preventthe drag on outer seal.
These glands are available in various different sizes and are suitablefor all cables up to 1000sq. mm and control cables up to 61 cores,
Threads can be ET/mm /NPT as per requirement. Howeverif any special kind of gland or thread is required,the same can be supplied on request. The gland can also be supplied with any other special plating such as cadmium, tin or pasivated. Also the glands can be supplied made out ofaluminum,mild steel or stainless steel. Can be supplied in 1A/ 11B/IIC
Certified by : Central Institute of Mining & Fuel Research
